DC 12-24V Vehicle Backup Camera Monitor System, Waterproof 18LEDs Night Vision Reversing Reverse Rear View Camera with 15M 4 Pin Aviation Cable +7″ TFT LCD Car Monitor for Large Truck Bus RV Trailer

Specification

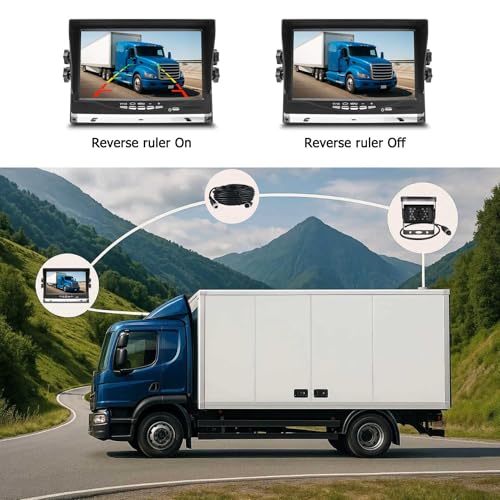

Camera: (Parking Lines On/Off)

Image Device: 1/3 Inch Color CMOS OV7950

Effective Pixels: 628x586pixles/PAL; 510X496pixels/NTSC

TV System: PAL/NTSC

Minimum Illumination: 0.1Lux / F1.2 (IR ON)

Horizontal Resolutions: 420 TV lines

Video Output: 1.0vp-p 75Ohm

Gamma Consumption: 0.45

Lens angle: 120deg

White Balance: Auto

S/N Ratio: More than 48db

Video output: RCA connector, 1.0V p-p 75ohm

Size: 60.5(L)*27.5(W)*31.6(D)mm

Power Supply: DC 12V-24V

Weatherproof/Waterproof, can be used both in car and home.

18 LED light.

Monitor:

LCD: 7 inch TFT LCD Screen

Resolution: 800(W) X 480 (H)

Video System: NTSC/PAL

2-channel video input: V1/V2 auto switching

Power: = 3W

Environment Humidity: 10% ~ 90%

Operating temperature: -20 ~ 60 degree Celsius

Storage temperature: -40 ~ 85 degree Celsius

Consumption: 7W

Power Supply: DC +12V-24V

Rear view pictures can be overturned by the butons of Up / Down / Left / Right

All functions can be operated by remote control, or buttons on the device

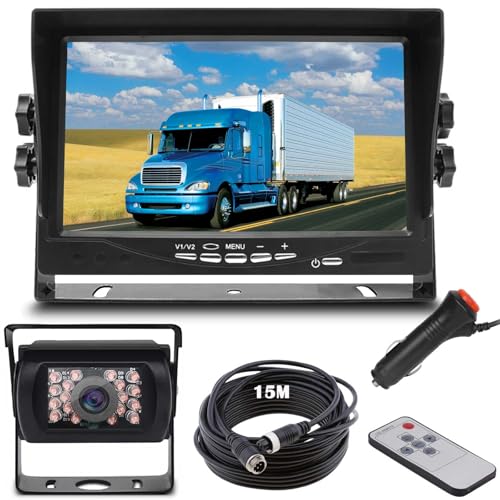

Package Contains

1 x 4Pin 18LEDS Night Vision Waterproof Car Rearview Camera

1 x 15M Cable

1 x 4Pin 7″ Car TFT LCD HD Monitor

1 x Sunshade

1 x Remote Control(No battery)

1 x Cigarette lighter power adapter

1 x Power Cable

1 x Manual

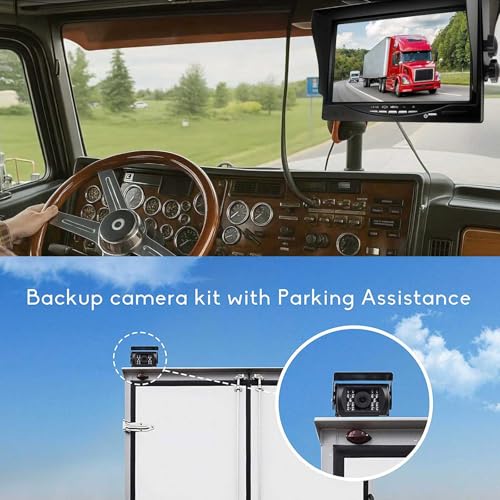

Vehicle Reversing Camera System for Truck Car Vans : It is a wired system, with 7 Inch IPS hd screen monitor with waterproof reverse camera + 4Pin Extension cable. The backup camera kit is widely used on DC 12V-24V vehicles, such as Trucks, RVs, Trailers, Bus, Pickup, Campers, Suv, Vans, Harvester, Motor Home, etc., coming with 15M(49ft) long enough cable. This is an ideal full angle camera system capable for backing, security, and many other uses.

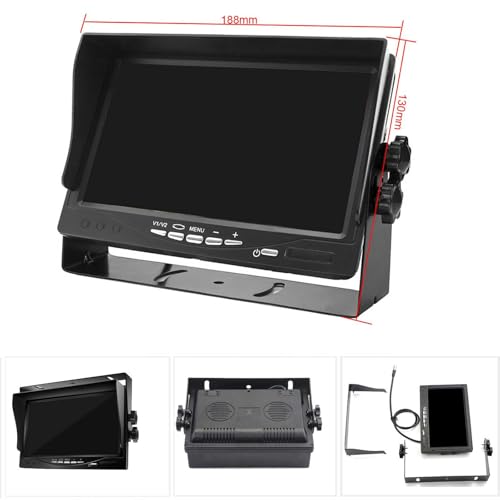

7 Inch LCD Vehicle Parking Rear View Monitor”, 2 Channel Video Input, large screen, sharp image. Image can be rotated horizontally and vertically for mirror or normal viewing, adjustable brightness, contrast and color
Waterproof Night Vision Reversing Camera: IP67 waterproof rear view camera fully protects your system, it will present superior clear images at rainy days. Reversing camera with 18 infrared LEDs for precise detection of obstacles and pedestrians, even in total darkness to ensure safer driving. is assistant for reversing and parking。

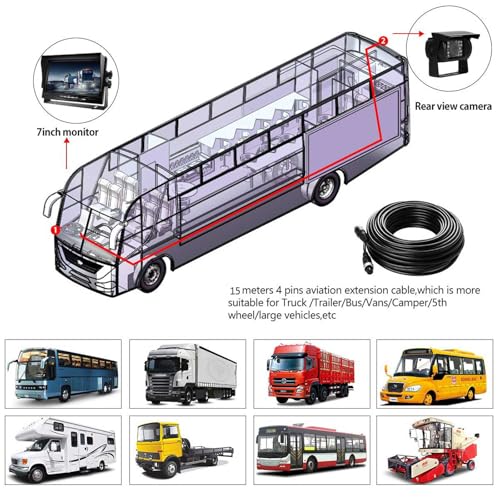

15M 4Pin Extended Aviation Cable: The 15-metre aviation-grade 4-pin cable delivers a secure, hard-wearing link between the camera and the monitor. One cable solution deals with power and video signal transmission. No need additional power cable to connect the reverse backup camera.
Easy to Install: The 7″ IPS reverse monitor and parking camera are powered by one power supply, this is simple plug-and-play with no experience needed. just connect the 7″ hd screen monitor to a cigarette lighter adapter, then 4pin aviation cable is to connect the truck reversing camera monitor to the rear parking camera,then automatically transmit the video signal, to allowing you to conveniently control the reverse in real time.
